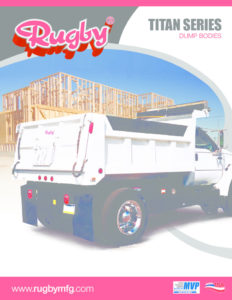

Rugby Titan

Rugby’s Titan Series Dump Bodies are designed to meet your bigger capacity, class 5-7 needs. Titans feature a sleek yet strong look, a dirt-shedding top rail, 10 degree sloped tailgate and radius front corner posts.

Features

• 10 gauge steel on side construction.
• 7 gauge steel floor with radius corners.
• 10 foot 6-8 yard body standard all 8 gauge.
• LED lighting standard
• Sides equipped with brackets for sideboard extensions.
• Fully boxed dirt-shedding top rail.
• 45 degree sloped rub rail.
• Three vertical boxed braces per side.
• Radius front corner posts with recessed clearance lights on lower post.
• Tapered Full height rear corner posts 5 inches deep.
• Front has fully boxed top rail with v-bend reinforced front panel.
• 7″ structural channel long sills and 4″ I beam cross sills on 12″ centers.
• Rugby products’ lighting locations have been designed to assist the installer in meeting FMVSS / CMVSS 108 requirements.
• New oval-shaped stop/turn/tail lights in upper rear corner posts with side clearance lights on lower post.
• All appearance corners have radius bends.
• Sloped ½ cab shield.
• Optional ¾ cab shield.
• Optional all 7 gauge on 5/7 yard dump body.

Tailgate Feature & Specifications

• Sloped 10 degree inward and recessed flush with rear face of corner posts.
• Two-way tailgate with adjustable rod on trip lever.
• Fully boxed frame, reinforced with two tapered verticle braces and one tapered horizontal brace.
• Angle iron reinforced decking at rear, ensures longer lasting gate seal.
• Heavy duty 1.25″ lower pins on tailgate, upper pivot arms are of .75″ plate.
• Grease fittings on upper pivot arms.
• Equipped with spreader chains and banjo eye chain holders in corner posts.
• Optional coal chute door.
• Optional spreader apron.
• Optional air tailgate.
