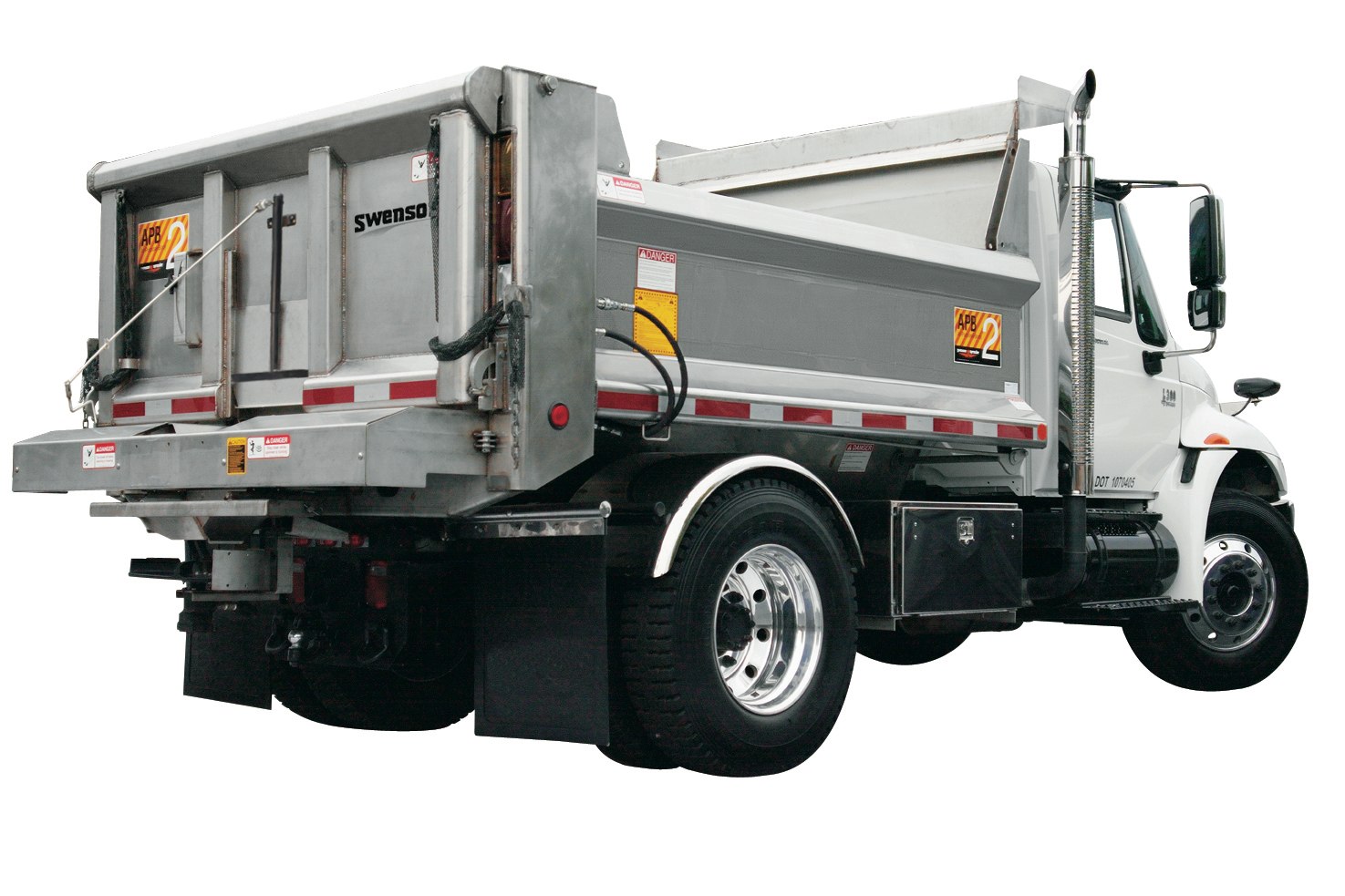

Swenson 2

Features

• Patented removable conveyor system allows conveyor to be easily services
• Flat floor body handles a variety of materials and can haul pallets, barrels, etc
• 6:1 gearbox handles most types of material
• 8 tooth sprocket and 2” drive shaft provides smooth conveyance of material
• Spinner mounts to body frame for quick installation and removal

Equipment

• Size Specifications: Body length: 9′ to 16′, Side Height: 28″ to 50″, Tailgate Height: 38″ to 58″
• Capacity: 5.0 to 16.5 cubic yards
• Construction: Stainless steel, carbon steel, Corten
• Application Rate: 4′ to 40′ spread pattern
• Steel Gauges: 10 gauge sides
• Safety Features: ICC light kit, body prop
• Warranty: 1 year
• Options: High temp belt over chain, top screens, double acting cylinder, ladder, dual flow control valve, rear conveyor switch, vibrator
