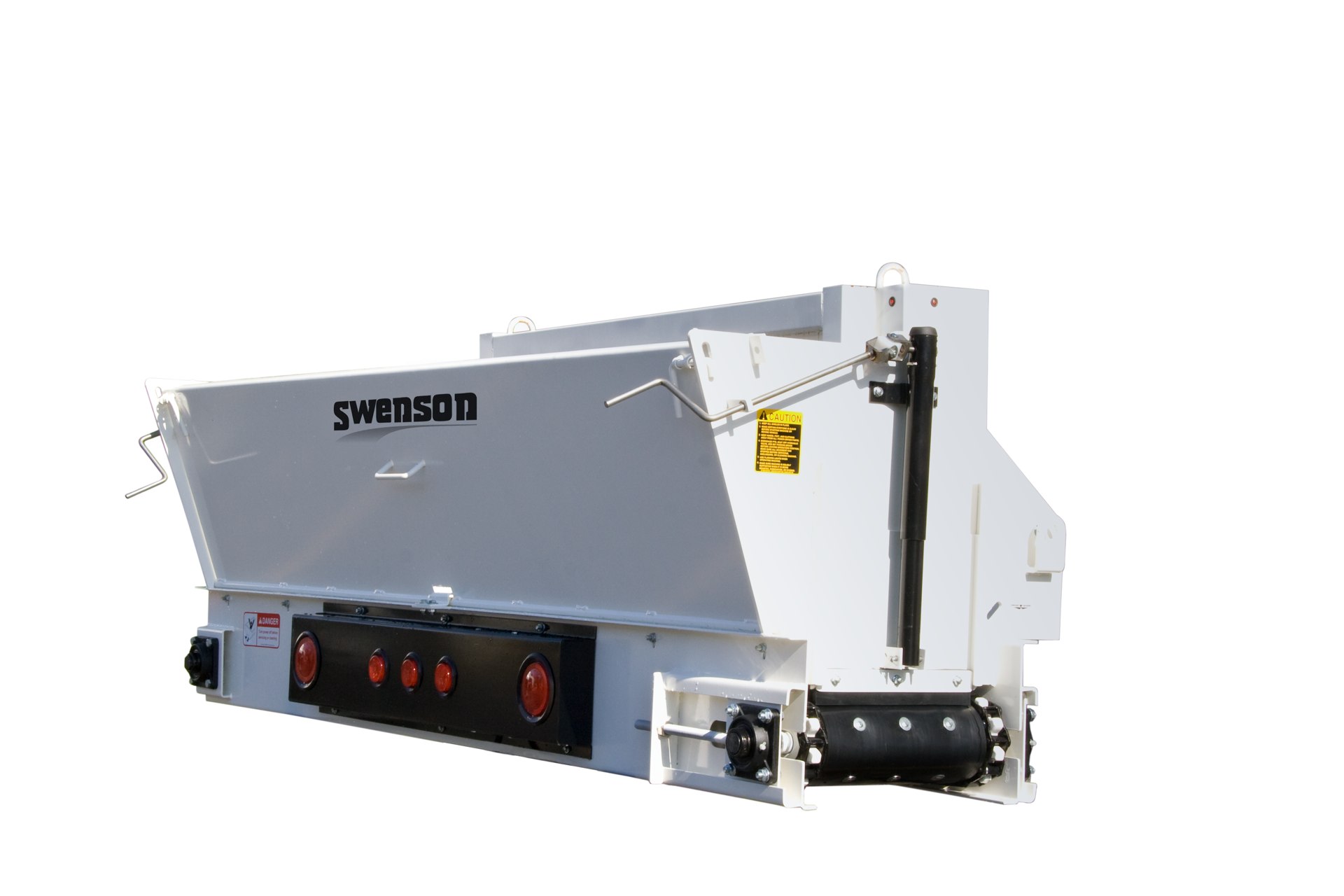

Swenson STCC Cross Conveyor Spreader

Brand: Swenson

Features

Designed for Class 7 + trucks (26,000 GVW )
An all-around performer designed for year round use including trench filling, shouldering, road sander and asphalt patching
High temp belt over chain handles a variety of materials to either side of truck
Hinged top cover makes dump truck functional while not spreading
Adjustable feedgate allows precise material output adjustment, even when loaded.
Quick detach 24” extension plate can be used on either side of conveyor
Dual feedgate allow materials to be discharged on either side of truck

Equipment

Size Specifications: 102″ long x 33″ x 32″ deep, 1,100 lbs
Capacity: N/A
Construction: Corrosion Resistant Stainless or Painted Carbon Steel
Flow Rate: 240 tons / hour
Steel Gauges: 10 ga body and 1/4″ end plates
Safety Features: Hinged top cover and endplate, Optional Lightbar, Optional Legstands
Warranty: 1 year
Options: Leg stands, reversing valve, spinner system, 4′ motorized extension, light bar

Materials

Sand • Salt/Sand Mix • 3/8 Chips • Shoulder Gravel • Asphalt
