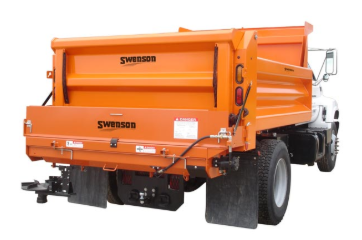

Swenson Under Tailgate Spreader-SB Series

Brand: Swenson

Features

Designed for 20,000+GVW trucks with ground clearance greater than 44”
Rugged 6 in. or 9 in. auger with continuous flighting to discharge at the extreme left or right end
Hydraulic safety interlock system disables auger when opening bottom door
Hinged bottom door makes clean out and blockage removal easy
Includes 24” berm chute for shoulder applications
Spinner stays parallel to the road even when the dump body is raised
Material drop port is located on extreme left and right end for discharge on either side.
Anti-flow plates save material by preventing free-flowing of material
Direct drive auger motor for higher performance and lower maintenance
Separate hydraulic motors for auger and spinner allow for better spreading control
Unit mounts below dump body floor to allow normal dump body operations when spreader is not in use

Equipment

Size Specifications: 96″ wide x 19″ tall x 18″ deep

SBD-6 – 540 lbs
SBD-9 – 600 lbs
Capacity: N/A
Construction: Corrosion Resistant Stainless or Painted Carbon Steel
Flow Rate: 4′ to 40′ spread pattern, 21 lbs/revolution
Steel Gauges: 7 gauge
Safety Features: Hydraulic Interlock System
Warranty: 1 year
Options: Dual Flow Control Valve Controller, Central Hydraulic Hose Kit, Central Hydraulic 7 Gallon Tank Kit , Right Hand Spinner Disk

Materials

Rock Salt • Sand • Salt / Sand Mix • Magnesium Chloride • Treated Rock Salt • Clear Path Ice Melt
