TruckCraft Aluminum One-Ton Dump

Brand: TruckCraft

Features

TC-410 SPECIFICATION

Chassis: 12,000 to 15,000 GVWR, 60” C.A. Bed Size: 96” wd. X 9’-4” lg.
Side Height: 16-1/2”, (permanent or drop 180°)
Tailgate Height: 22-1/2” (drop 180°)
Volume Capacity: 3 1/3 cubic yards to top of sides
Hoist Rating: 10,400 lb
Floor Height: 11-1/8” above truck frame
Cab Guard: Quarter (STD), Half and Three Quarter (optional), bolt on
Weight: 1,240 lbs (assembled w/ hoist, 1/2 cab guard & drop sides)
Max Dump angle: 50°
Floor Construction : 6061-T6 heat treated aluminum extrusions w/ cross members every 5”
Operating System: Monarch electric/hydraulic power unit – Double acting
Lighting: LED Lights with wiring harness factory installed
Warranty: Two year limited

TC-420 SPECIFICATION

Chassis: 14,000 to 19,500 GVWR, 60” C.A.
Bed Size: 96” wide. X 9’-4” long.
Side Height: 16-1/2”, (permanent or drop 180°)
Tailgate Height: 22-1/2” (drop 180°)
Volume Capacity: 3 1/3 cubic yards to top of sides
Hoist Rating: 21,400 lb
Floor Height: 13-3/8” above truck frame
Cab Guard: Quarter (STD) , Half and Three Quarter (optional), bolt on
Weight: 1,690 lbs (assembled w/ hoist, ½ cab guard & drop sides)
Max Dump angle: 50°
Floor Construction : 3/16” thick 6061-T6 heat treated aluminum extrusions w/ cross members every 5”
Operating System: Monarch electric/hydraulic power unit – Double acting
Lighting: LED Lights with wiring harness factory installed
Warranty: Two year limited

TC-425 SPECIFICATION

All aluminum 3.2 yd. dump body made specifically for 14,500 GVWR, 86.5″ C.A. ISUZU NPRs. Body weight 1,800 lbs, correct center of gravity for this chassis, 16,600# dump rating, 50 degree dump angle, drop or rigid sides.

TC-430 SPECIFICATION

Chassis: 14,000 to 19,500 GVWR, 84” C.A.
Bed Size: 96” W X 11′ L
Side Height: 16-1/2”, (permanent or drop 180°)
Tailgate Height: 22-1/2” (drop 180°)
Volume Capacity: 4 cubic yards to top of sides
Hoist Rating: 16,600 lb
Floor Height: 13-3/8” above truck frame
Cab Guard: Quarter (STD), Half and Three Quarter (optional), bolt on
Weight: 1,850 lbs (assembled w/ hoist, 1/2 cab guard & drop sides)
Max Dump angle: 50°
Floor Construction: 3/16” thick 6061-T6 heat treated aluminum extrusions w/ cross members every 5”
Operating System: Monarch electric/hydraulic power unit – Double acting
Lighting: LED Lights with wiring harness factory installed
Warranty: Two year limited

Options (All Models)

1/2 or 3/4 Cabguards
Rigid or Drop Sides
Deduct Avail for No Hydraulic Pump, Hose, Power Cables
1,2, and 3 coal chutes in tailgate available
Manual roll up tarp kit

Literature
Related Products

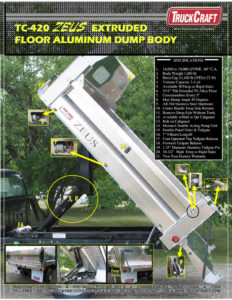

TC420-ZEUS-FLYER-9_5_08
