TruckCraft Dumping Aluminum Flatbeds

Features

GENERAL STARTLIFTER DESCRIPTION

Heavy duty or extra heavy duty aluminum flats, factory assembled on a pre-painted subframe, complete with a double-acting MONARCH® power unit and all hardware required for quick installation. Available in sizes to fit pickup trucks, up to body lengths of 14’-2” long for 120″ C.A.’s. Dump capacities from 9,500 lb to 17,000 lb.

• Double-acting hoist, MONARCH® power unit; 50 degree dump angle
• All steel subframe
• Comes pre-assembled to painted hoist & sub frame.
• High strength 6061 T6 extruded alloy construction
• LED  marker lights with harness included
• Stake pockets cut into top rail
• Two year warranty

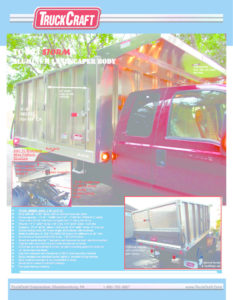

TC-503 STORM DESCRIPTION

The TruckCraft TC-503 STORM is available in 9′-9″ & 11′-5″ versions with either 40″ or 50″ high sides to fit your job needs. Options include a passenger-side front door, tailgate with coal-chutes, various rear barn-door configurations and roll tarp.

• Lengths Available- 9′-9″ & 11′-5″
• Side Heights Avail- 40″, 50″
• Cubic yard. Cap- 11′-5″x50″=12.8; 11′-5″x40″=10.2; 9′-9″x50″=11.3; 9′-9″x40″=9.0
• Weight- 11′-5″ – 1,913 lb;     9’9″ – 1,655 lb
• Hoist Type- Double acting, NTEA CL7, Scissor with sub frame, pendant control
• Dump Capacity- 11′-5″ 16,600 lb; 9′-9″ 17,000 lb
• Floor- 2-3/8″ extruded T6 alloy alum planks, 3/16″ top surface, with stiffeners on 5″ centers
• Fully assembled from factory
• Longsills- T6 alloy 7″ H-Beam
• Full height solid rear barn doors std
• Rub rail- 5-1/2″ tall T6 alloy aluminum
• All doors are removable
• FMVSS Compliant markers with harness

TC-508 ARROW DESCRIPTION

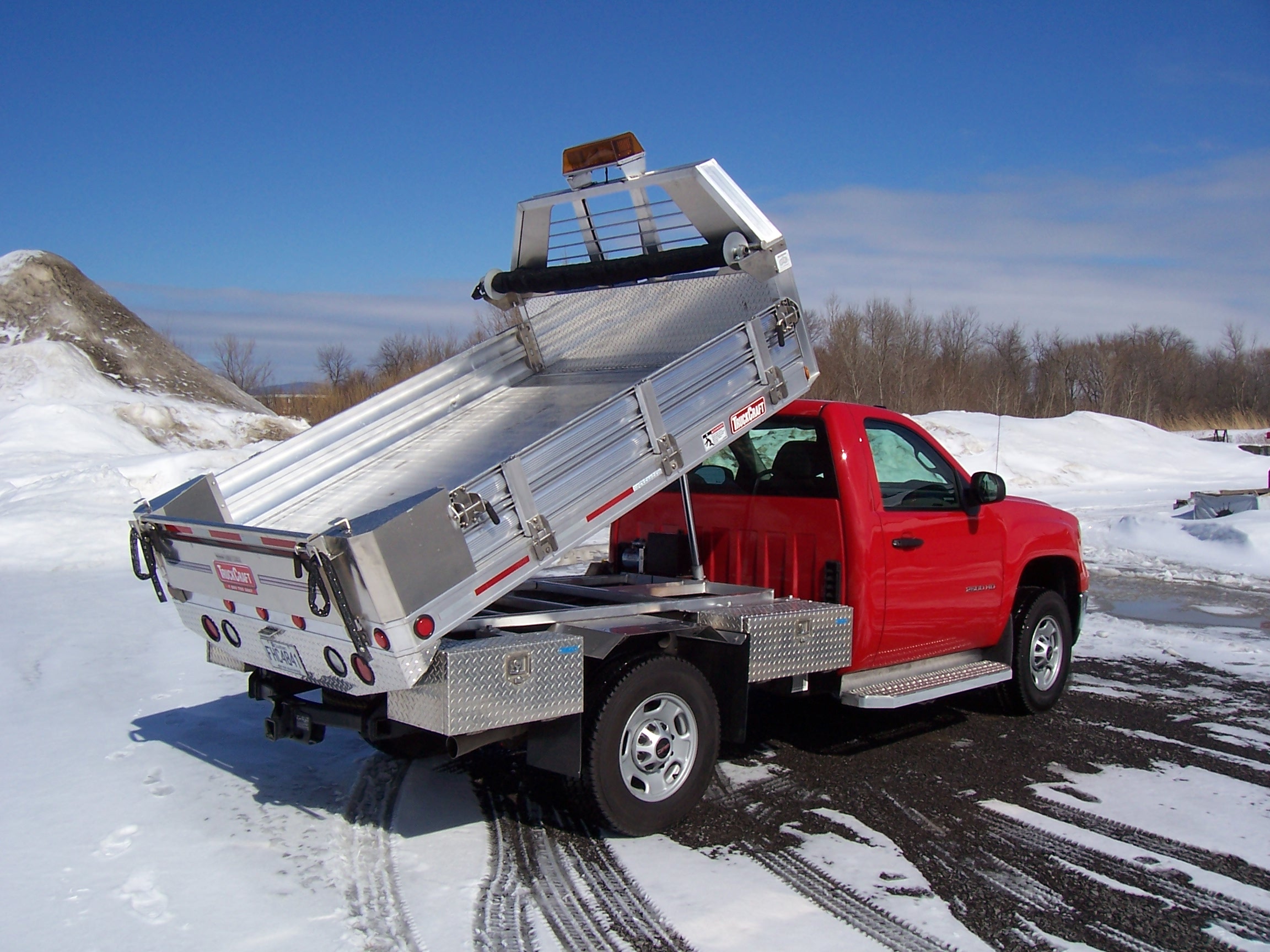

The TruckCraft ARROW dumping flat weighs less than 800 lbs, including the cabguard, and is designed to make your SRW pickup into a working dump truck. (Never exceed the GVWR rating of your vehicle) Arrow has a 7,000 lb dump capacity, so no matter how big your job, you will have lift capacity to match your truck GVWR. The efficient front telescopic cylinder & electro-hydraulic power unit are pre-assembled at the factory to make this a super quick install on your vehicle – just hook up the supplied battery cable, marker lights, and make the required fuel fill connections and you’re ready to go.

Options

GENERAL STARTLIFTER OPTIONS

• Available in 81″, 94″, and 96″ widths
• Variety of Stake Racks or Drop Sides available
• Variety of Cabguards offered
• Tailskirt w/LED Lights and harness
• External rub rails with stake pockets
• Flush mount 6,000# cap  D-Rings
• Tarp Kit

TC-503 STORM OPTIONS

• Side Access Door- 49″ wide, pass. side, front
• Cabguard- 40″ lg, 6 tie-downs, 200 lb load cap
• Tailgate- two-way, single-handle top-drop with perforated upper barn doors
• Bail operated coal chute
• Roll up tarp assembly

TC-508 ARROW OPTIONS

• Stake Racks or Drop Side set with tailgate
• Tailskirt with LED lights & harness
• External rub rails
• Flush mounted D-Rings
